| Size reference: | 800-470-680mm |

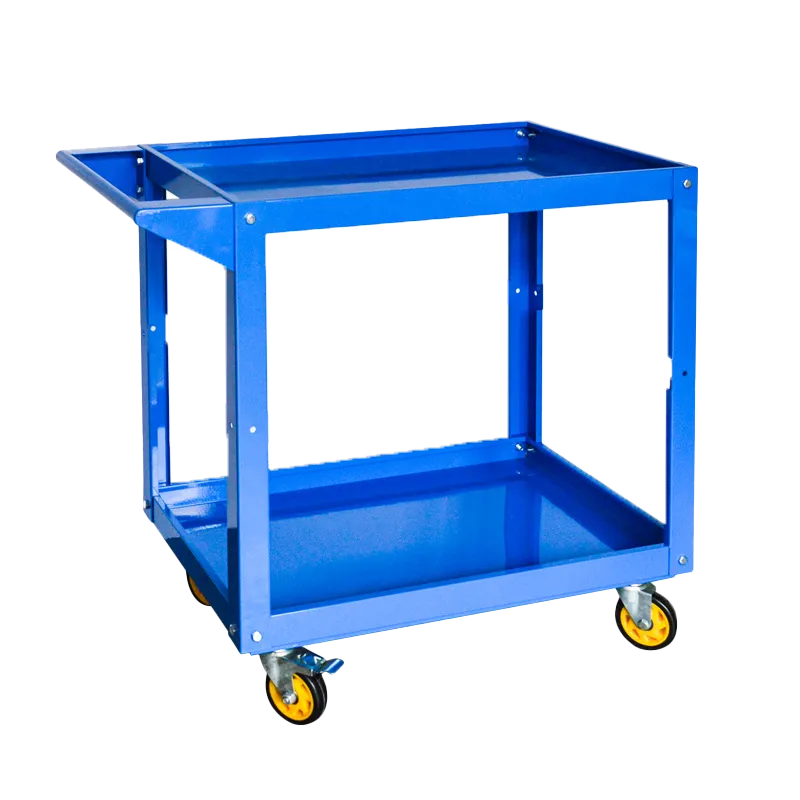

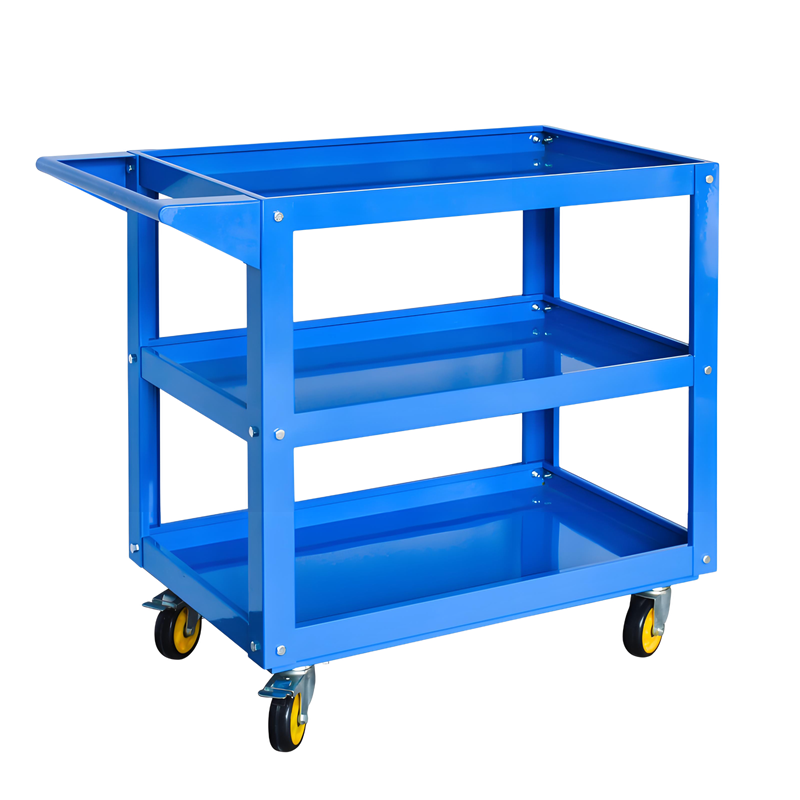

| Number of cart layers: | Second floor/third floor optional |
| Load bearing capacity per layer: | 200kg |
| Material technology: | Galvanized steel plate + electrostatic spraying |
- Product Introduction
Superior Load-Bearing Capacity: Constructed from thickened, high-quality materials, it offers exceptional structural strength and load-bearing performance, meeting the demands of carrying a wide range of tools, parts, and materials.
Scientific Design: The multi-layered storage space is strategically arranged, allowing tools and parts to be organized and easily accessed.
Flexible Mobility: Equipped with high-smoothness industrial casters, it offers effortless maneuvering and flexible steering, making it easy to maneuver between workshops, warehouses, and other work locations.
2. Core Advantages
Durable and Reliable: Engineered with superior materials and craftsmanship, it resists wear and deformation, ensuring stable operation despite frequent and long-term use.
Improved Efficiency: By optimizing storage and handling processes, it reduces tool search time, speeds up material turnover, and effectively improves overall workshop efficiency.
3. Applicable Applications
Widely applicable in industrial workshops, warehouses, production lines, and other locations, it is suitable for a variety of tasks, including tool organization, material transfer, and parts distribution. It is an ideal device for on-site workshop management and efficient production.

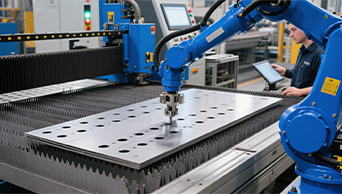

Confirm hole types (round/square/irregular), hole diameter, hole pitch, arrangement method (matrix/honeycomb/custom)
Evaluate plate thickness (usually 0.5-6mm) and material choice (aluminum/stainless steel/galvanized steel, etc.)
Provide DFM (Design for Manufacturability) suggestions to avoid design conflicts
-
Applicable Scenarios
High precision complex patterns
-
Precision
±0.1mm
-
Features
No burrs, smooth hole edges
-
Applicable Scenarios
Large batch standard holes
-
Precision
±0.15mm
-
Features
High efficiency, cost-effective
-
Applicable Scenarios
Extra-thick plates (>10mm)
-
Precision
±0.2mm
-
Features
No thermal deformation
·Hole pitch tolerance·
±0.1mm (precision grade) / ±0.3mm (standard grade)
·Burr height·
≤0.05mm (requires secondary deburring)

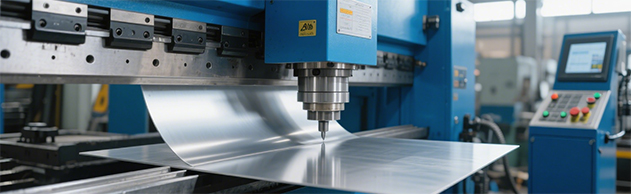

·Standard round hole·
Use multi-station dies for simultaneous punching
·Irregular hole·
Custom tungsten carbide molds
Bending radius ≥ 1×plate thickness
Use micro-beam plasma welding to reduce thermal deformation
(Full inspection or sampling inspection)
Control within ±0.05mm
Deformation ≤ 0.3mm/m²
| Parameter | Standard Value | Remark |
|---|---|---|
| Min Hole Diameter | ≥ Thickness × 0.8 | Prevent Punch Breakage |
| Edge Distance | ≥ Thickness × 1.5 | Avoid Edge Deformation |
| Hole Pitch | ≥ Thickness × 2 | Ensure Strength |
| Material | Recommended Thickness | Feature |
|---|---|---|
| Aluminum 5052 | 1.0-3.0mm | Lightweight Preferred |
| Stainless Steel 304 | 0.8-2.5mm | Lightweight Preferred |
| Galvanized Steel SECC | 1.2-3.0mm | Cost-effective |
(Depth ≤ 0.3× Thickness)
(M3-M8 Thread Holes)
Coordinate Measuring Machine
(Hole Position Full-Size Inspection)
Roughness Tester
(Hole Wall Ra ≤ 3.2μm)
Salt Spray Test Chamber
(According to ASTM B117 Standard)
Scratch-Resistant PE Film Wrap
Corrugated Cardboard Spacer Protection
Wooden Box Reinforcement
(For Oversized Panels)
